TD06SL2R 20G-10.5cm Bolt On Lancer EVO 4/5/6/7/8

KANDO P/N

- 301-02034-045

ITEM NAME

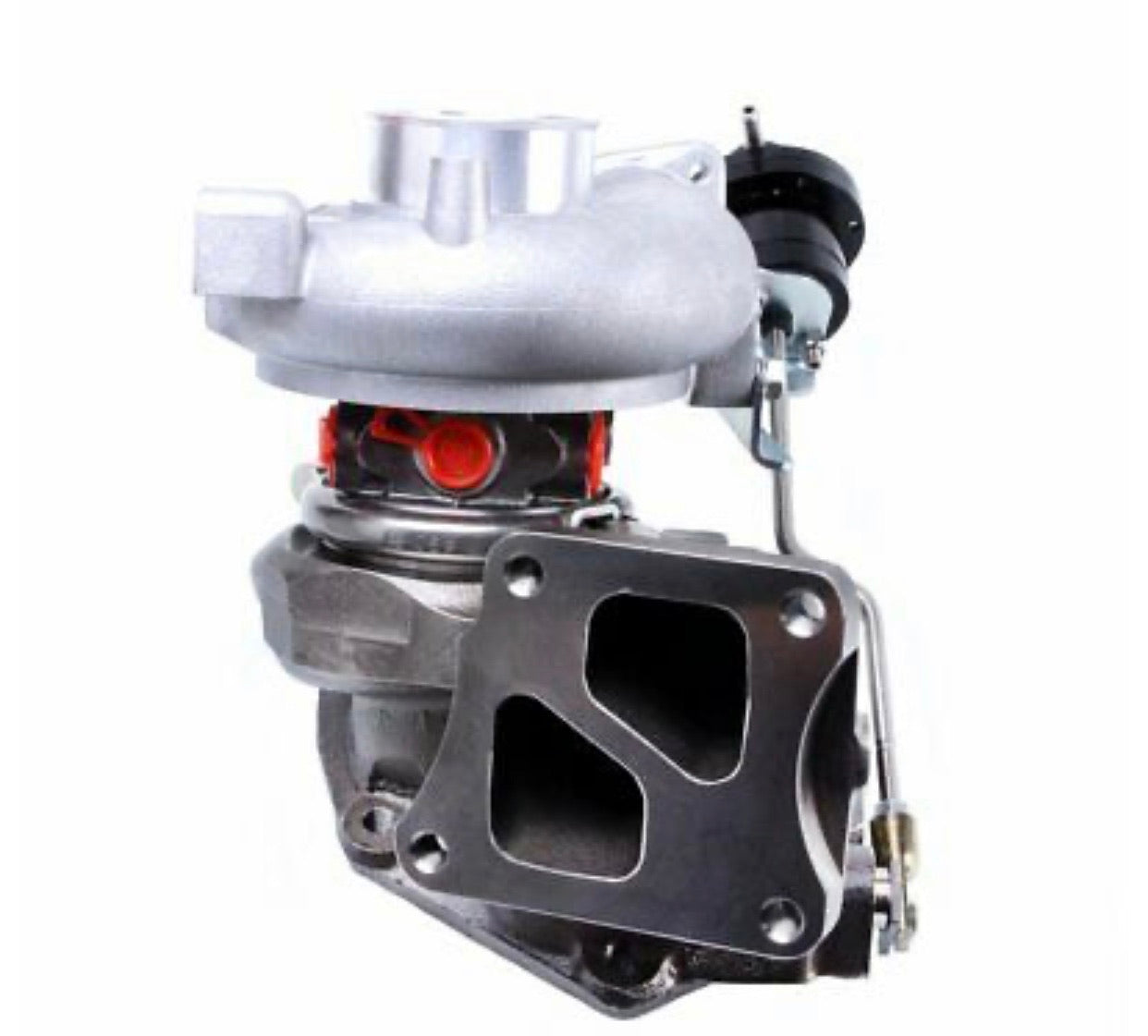

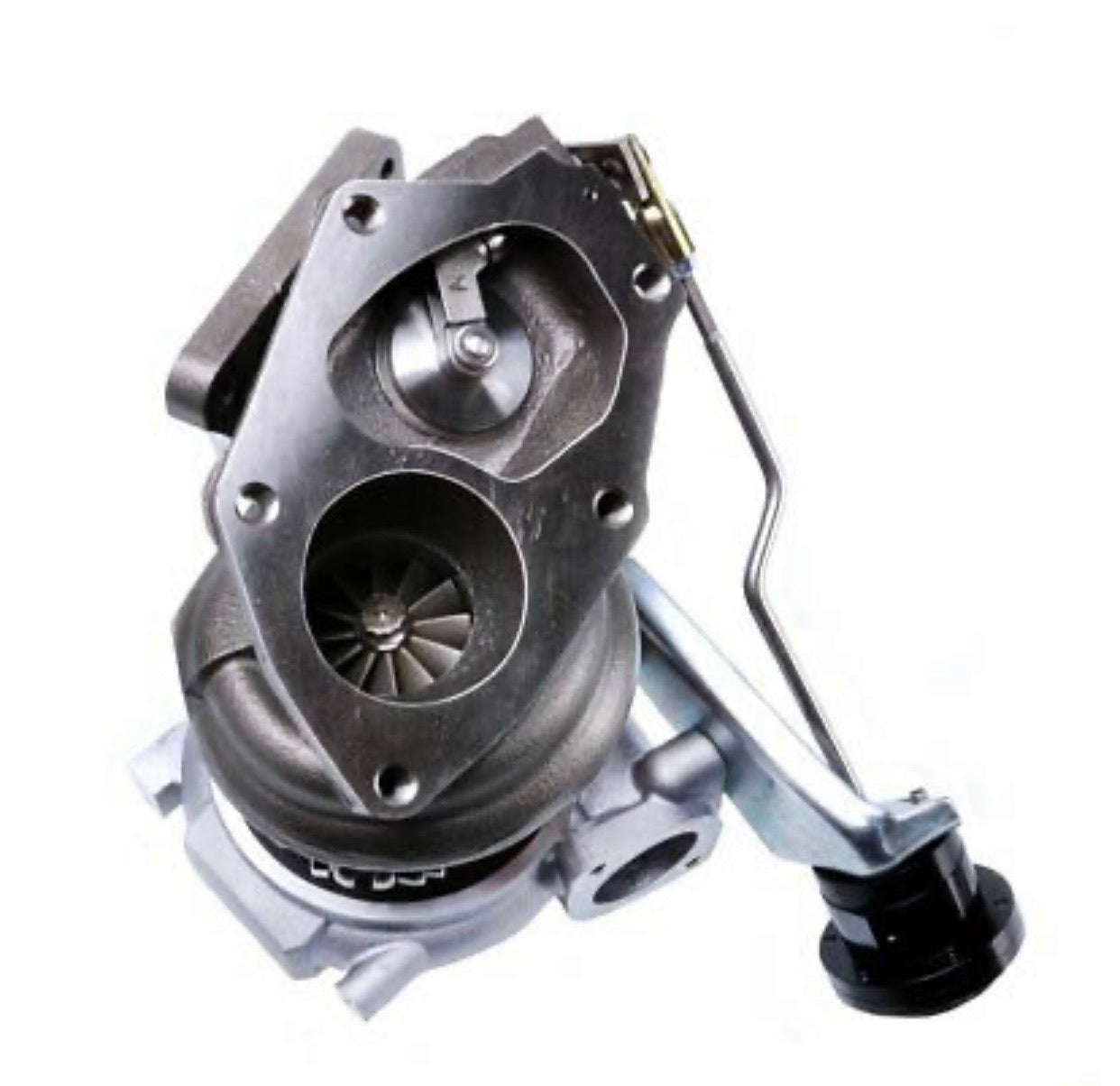

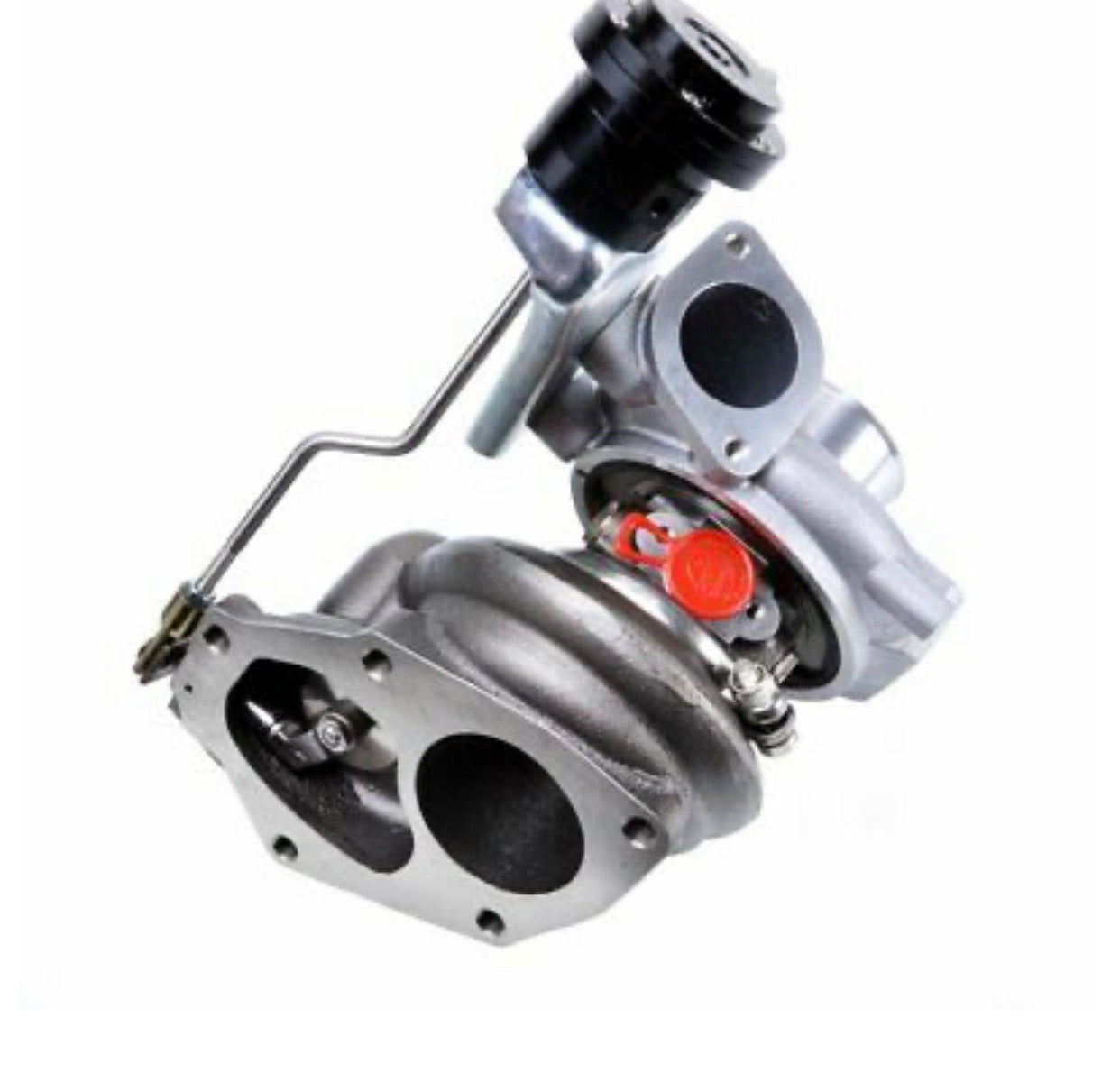

- Kinugawa Mitsubishi Lancer EVO 4~8 TD06SL2R-20G

  turbocharger with 10.5 turbine Housing

APPLICATION

- Upgrade Mitsubishi Lancer EVO 4~8 TD05HR-16G

  turbo to TD06SL2R-20G and Direct Bolt On

CHRA/WHEEL SPEC

- chra size : TD06SL2R-20G

- compressor wheel : 52.3 / 68.0 mm,

- turbine wheel : 61.0 / 54.1 mm

TURBINE HOUSING

- 10.5T

COOLING/BEARING SYSTEM

- cooling system : oil and water cooling

- bearing system : journal bearing system

  (KAMAK performance thrust bearing kit)

ACTUATOR

- 1.0bar / 14.7 psi

- we also can provide 0.5bar, 0.8bar, 1.2bar, 1.5bar,

  1.7bar and 2.0bar actuator,please kindly let us know

  if you need to change it.

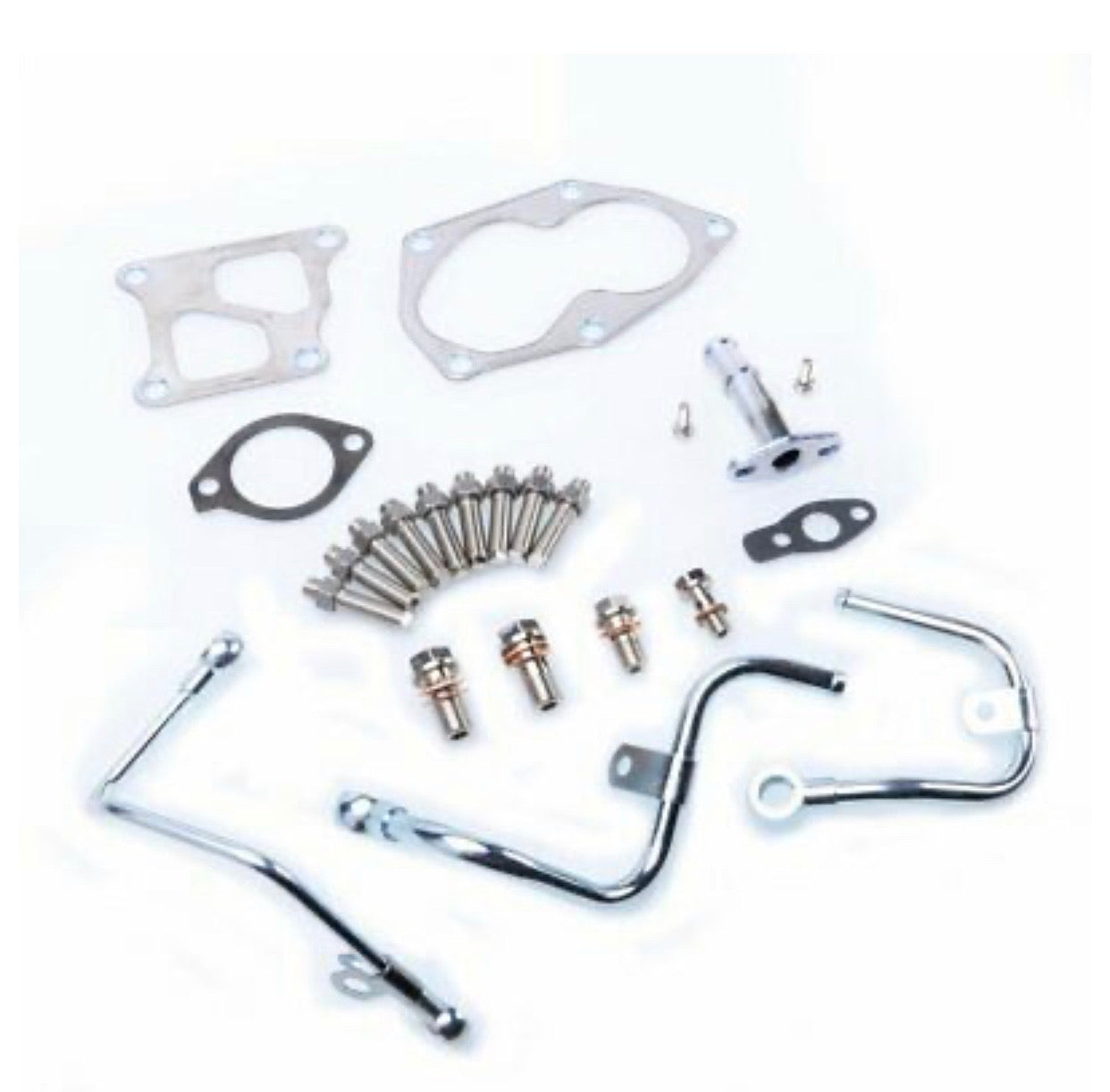

KIT INCLUDES

- 1 x oil feed pipe kit

- 1 x water feed and return pipe kit

- 1 x oil return pipe kit

- 1 x turbine inlet and outlet gaske

- 1 x compressor outlet gasket

- 9 x stud and nut set

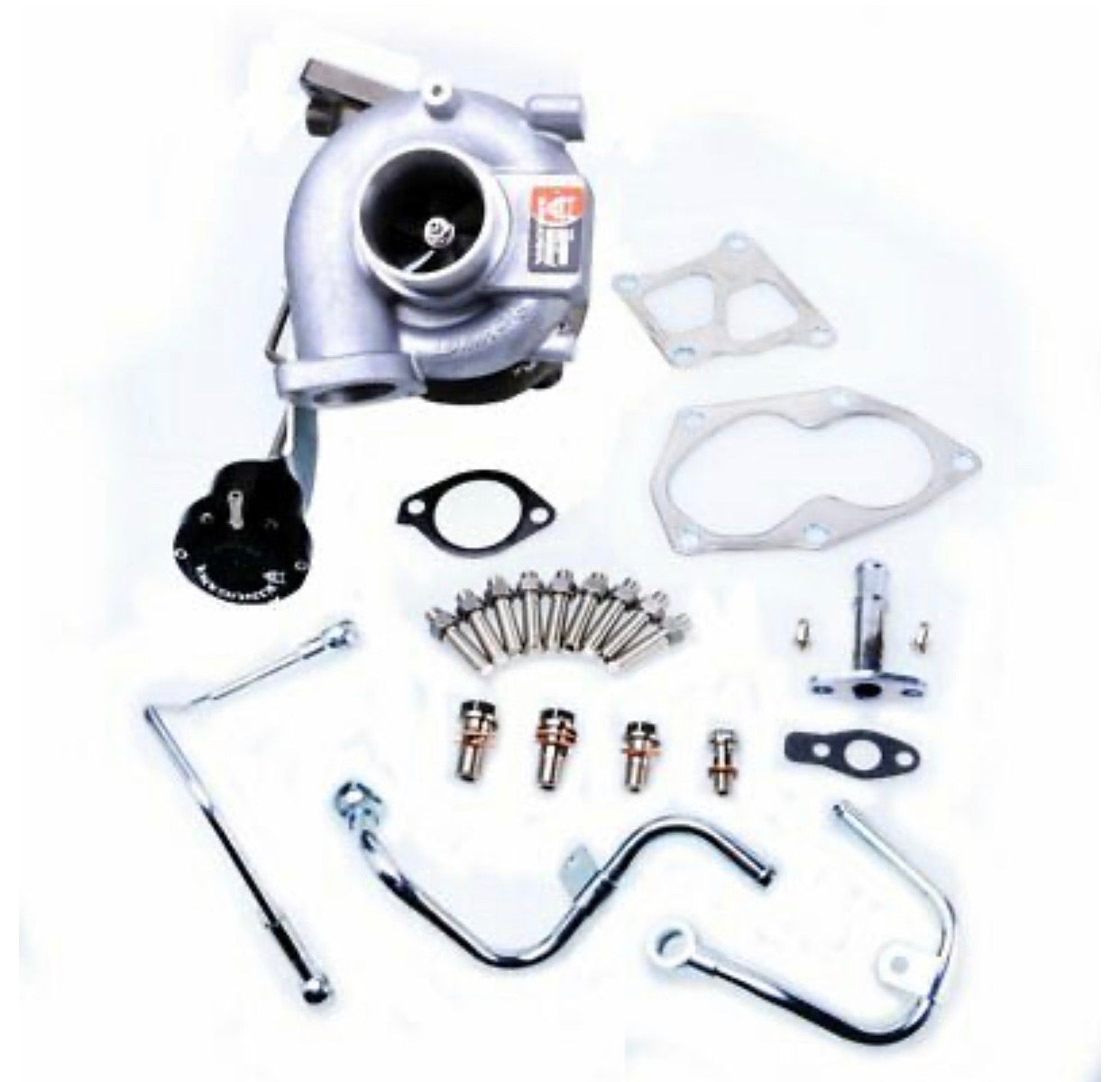

Everything shown on picture is included

ITEM SITUATION

- Brand New

- Complete CHRA balanced by SCHENCK MBRS

  110 Germany

MANUFACTURE

- Kinugawa turbo

WARRANTY

- One Year
