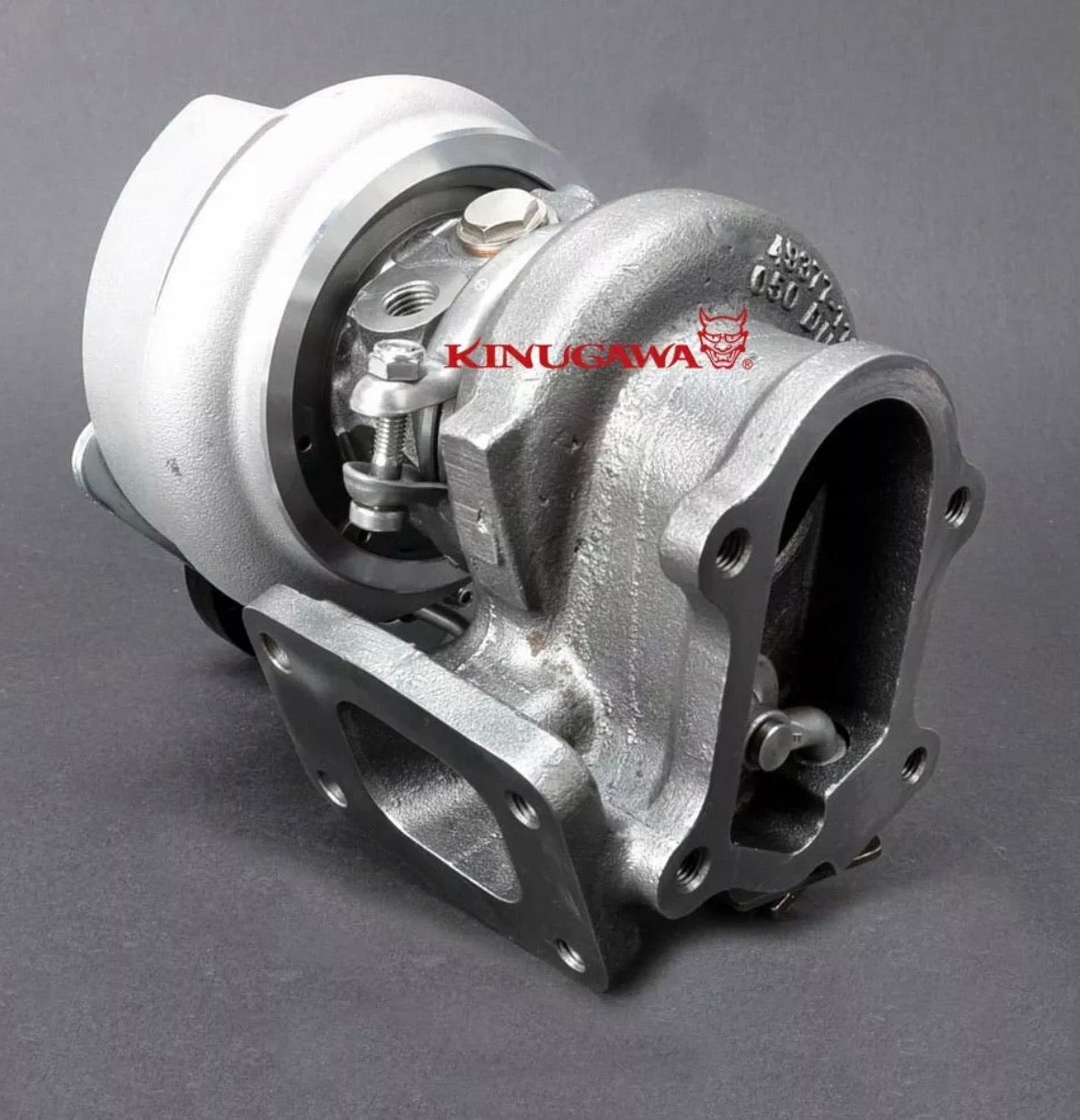

Kinugawa Turbocharger TD04L-15T w/ 5cm T25 Inlet Flange

KANDO P/N
- 301-02001-253
ITEM NAME
- Kinugawa TD04L-15T Turbo w/ 5cm T25 Turbine

  Housing with Adjustable Actuator and complete

  install Kit.
APPLICATION
- Universal type
- 1.3~2L engine / 150~ 250 HP
CHRA/WHEEL SPEC
- TD04L-15T
- Compressor wheel : 42 / 56.0 mm
- Turbine Wheel: 41.3 / 47 mm

  (TD04L / 12 blade High Flow Wheel)c
COMPRESSOR HOUSING
- Cover inlet dia : 2.2” / 56mm
- Cover outlet dia : 2” / 50.5mm
TURBINE HOUSING
- Nozzle Area : 5 cm^2
- T25 inlet flange
- Internal gated
COOLING/BEARING SYSTEM
- Oil and water cooling
- Journal bearing system
  (Performance Thrust Bearing Kit)
ACTUATOR PRESSURE
- 0.8bar / 11.76 Psi

- We also can provide 0.5bar, 1.0bar, 1.2bar, 1.5bar,

  1.7bar and 2.0bar actuator, please contact us if you

  need to change it.

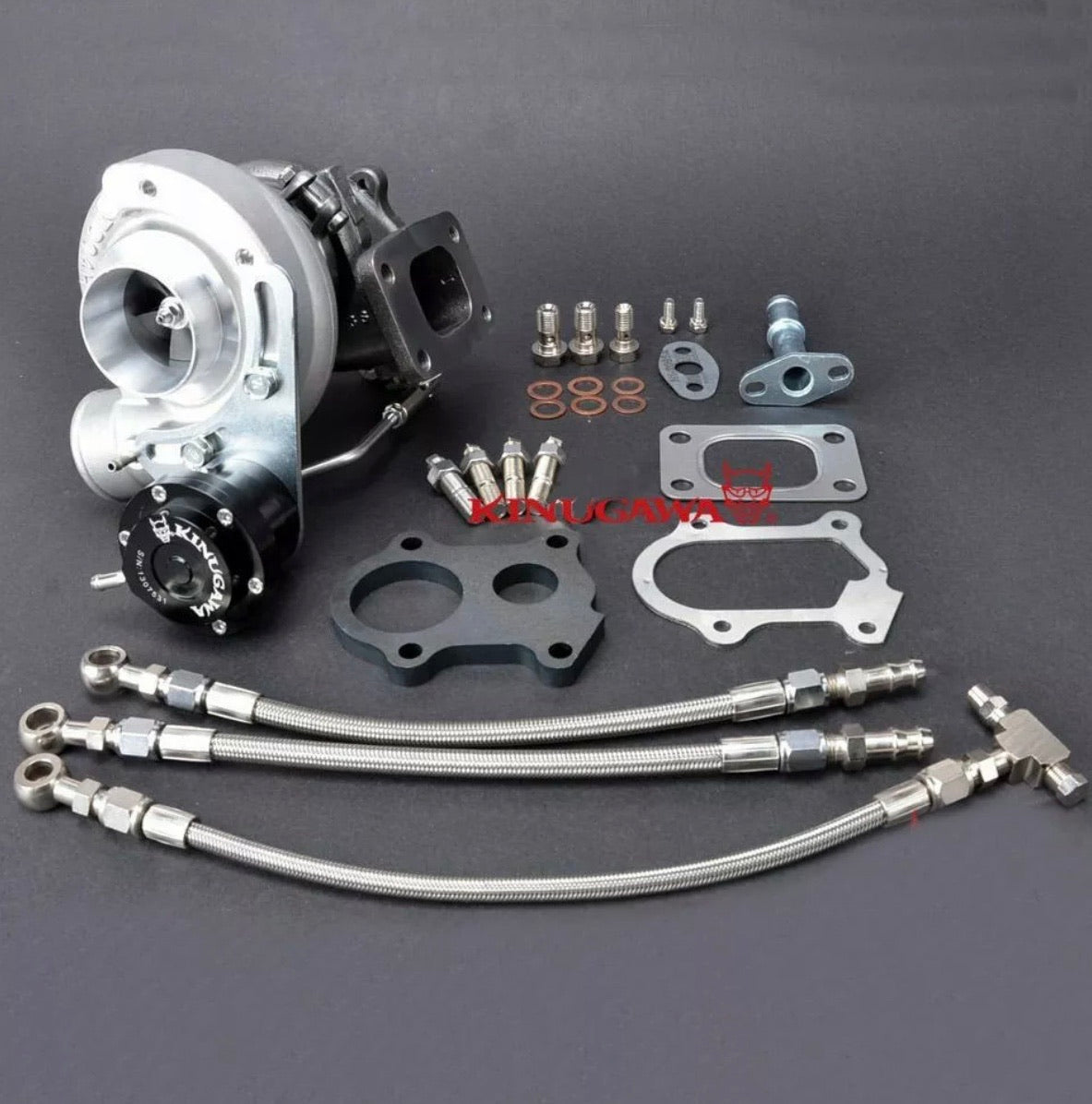

KIT INCLUDES
- 1 x 70cm 1/4" 4AN oil feed line kit
- 2 x 24cm 5/16" 4AN water feed and return line kit
- 1 x oil return pipe kit
- 1 x turbine inlet and outlet gasket set
- 1 x turbine Outlet Flang
- 4 x stud and nut set

ITEM SITUATION

- Brand New

- Complete CHRA balanced

MANUFACTURE

- Kinugawa turbo

WARRANTY

- One Year
