Kinugawa TD05H Mazda Mazdaspeed 3 6 MPS MZR DISI 2.3L CX7 CX9 K04 Killer
Regular price
$1,159.00 AUD
Regular price
Sale price
$1,159.00 AUD
Unit price
per
Couldn't load pickup availability
Product description

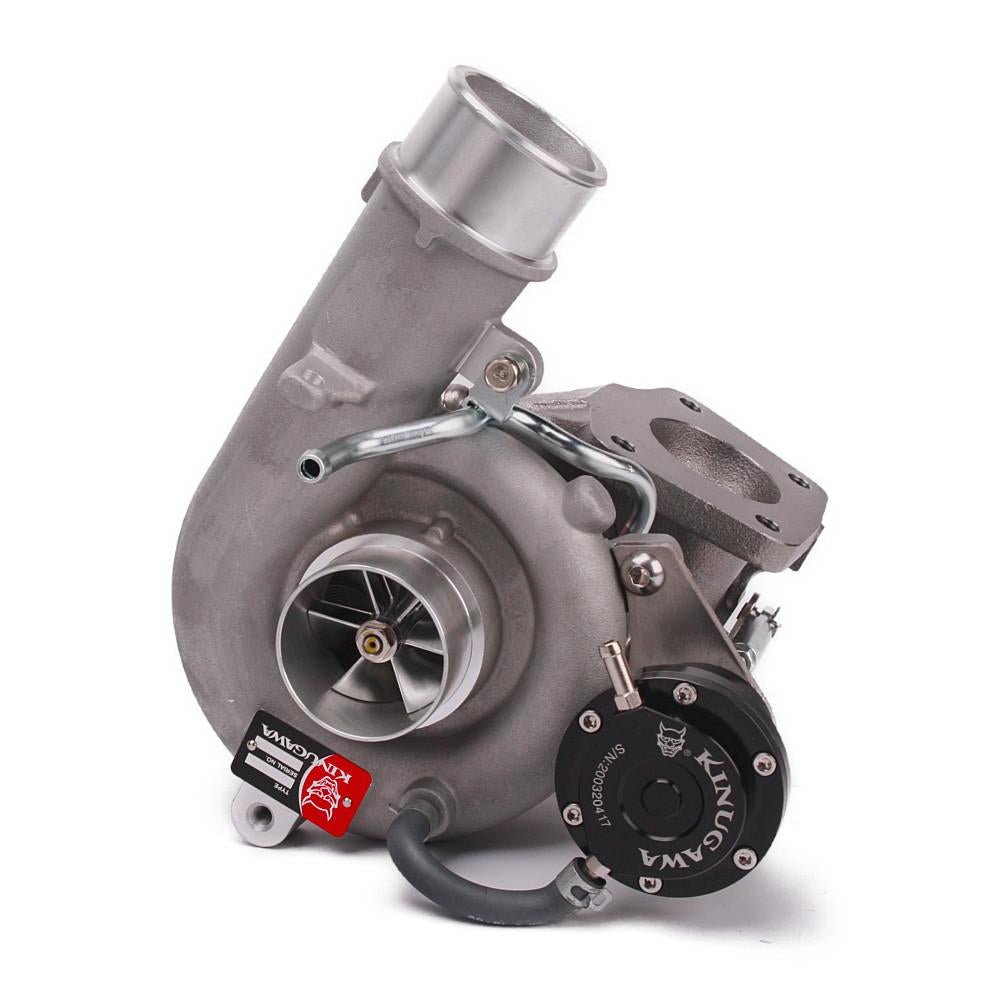

Is the factory turbocharger feeling a little tired? Or if you are ready to make a little more power without going way over the top, then you will be pleased with the Kinugawa TD05H Turbocharger. This is a great upgrade for those of you looking to make more power while maintaining a great low-range to the mid-range response. This particular turbocharger is capable of producing up to 400WHP on a healthy engine with excellent throttle response. This is a great option for street and
track duties
APPLICATION

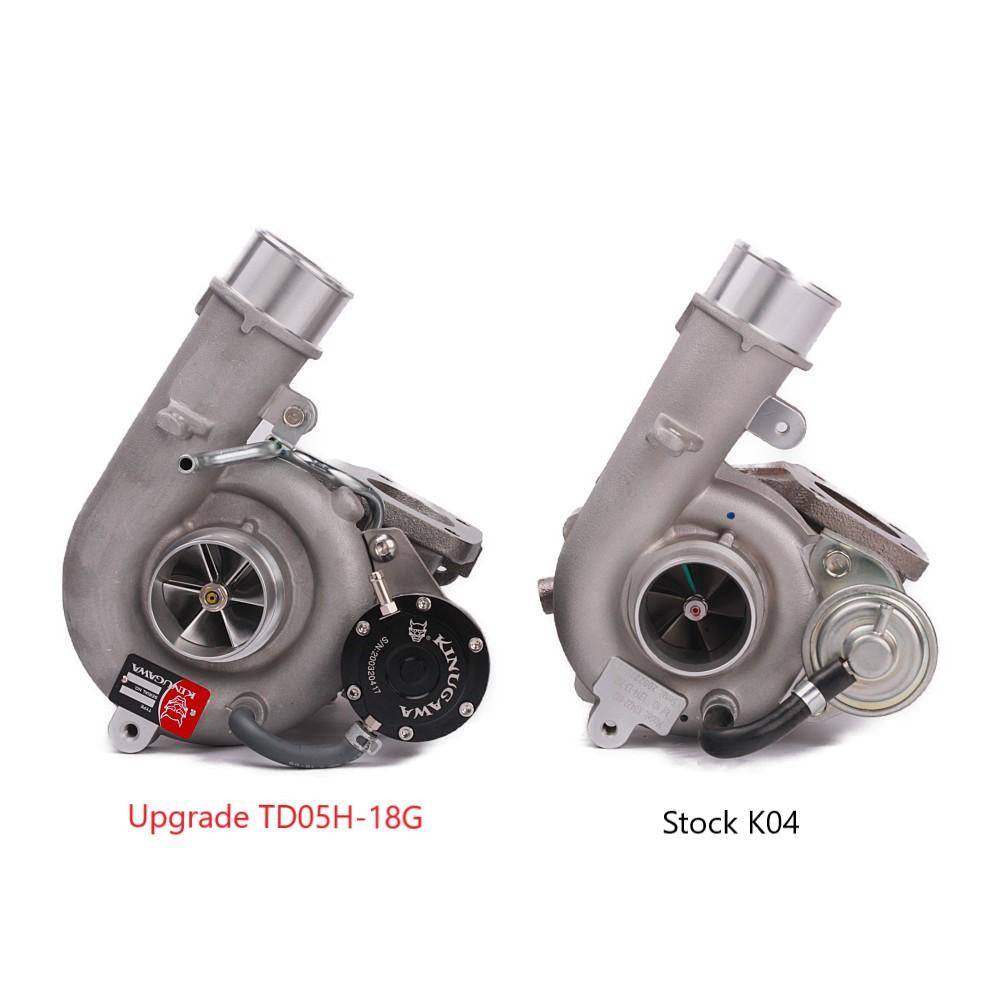

- 2007~2013 Mazdaspeed 3 MPS / 6 / CX7 / CX9 with K0422-881, K0422-882, K0422-883 K04-581, 582, 583 turbocharger. Horsepower range 350~400WHP
CHRA Size
- TD05H-18G
Wheels Spec
- Compressor wheel: 50.3 / 68.0 mm (Billet 6+6 blades for low-end torque and Billet 11+0 blades for top-end speed)
- Turbine wheel: 56.0 / 49.2 mm
Compressor Housing
- Compressor inlet: 2.25 "
- Compressor outlet: 2.0"

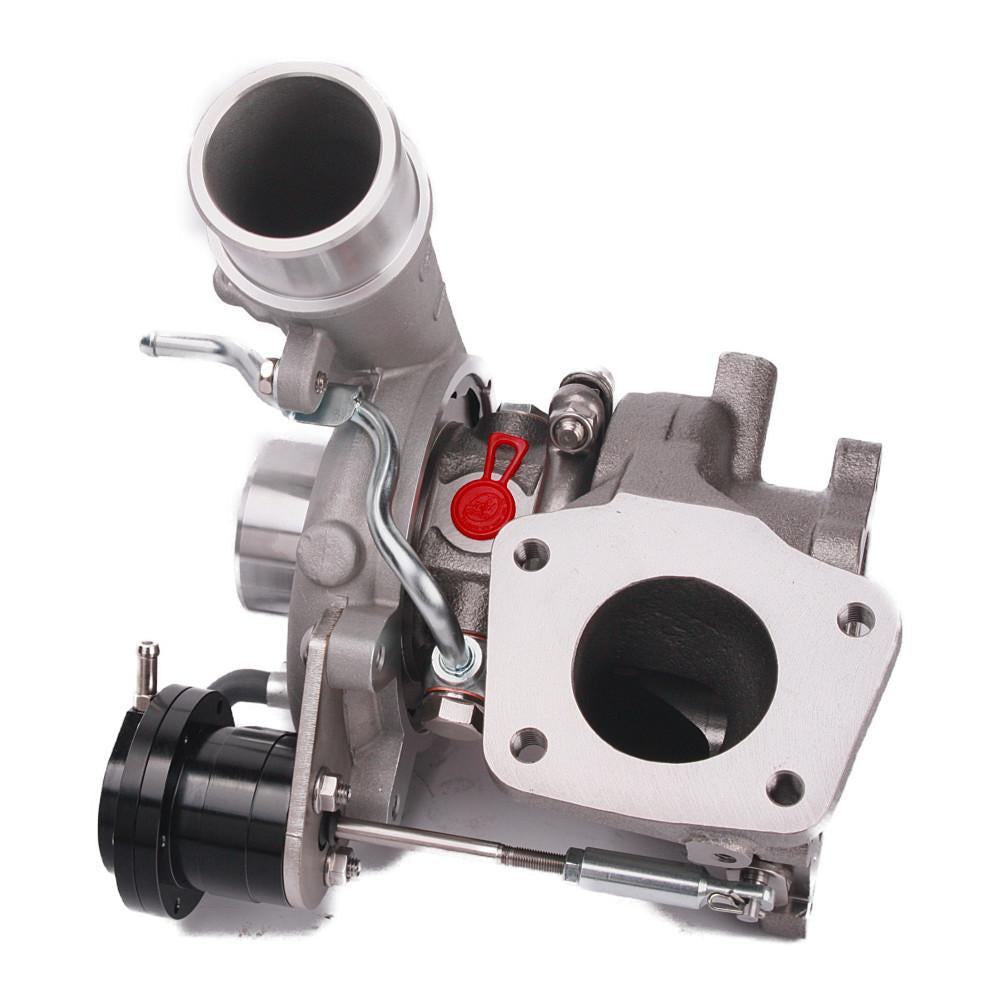

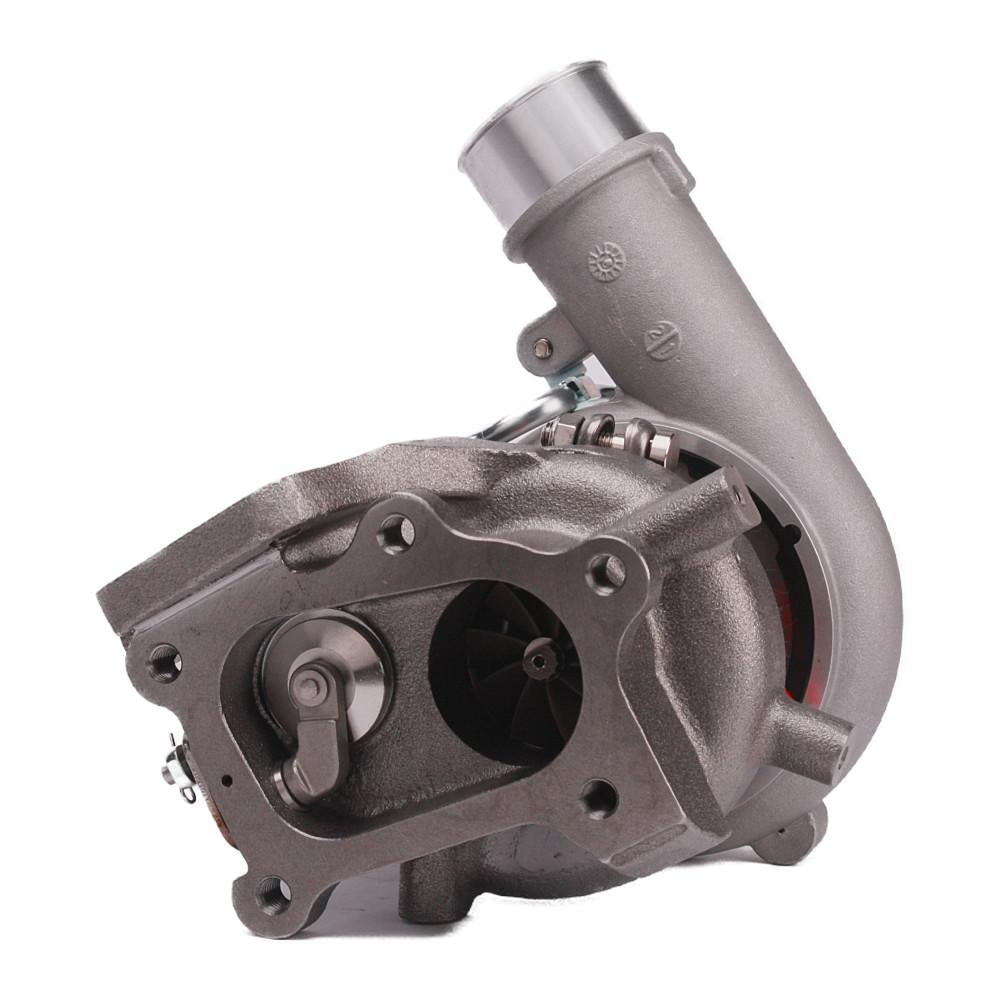

Turbines Housing
- Bolt-on to the stock manifold
Bearing Type
- Journal Bearing with 360-degree thrust bearing kit
Cooling Type
- oil and water cooling
Actuator Pressure
- 1.0bar is the default.
-We have 0.5bar, 0.8bar, 1.2bar, 1.5bar, 1.7bar, and 2.0bar drives, Please add a comment to your order if you need to change it.
Boost / hp
- Horsepower 350~400whp
- The Max boost is limited: 2.8bar
- Preposed beat: 1.5bar

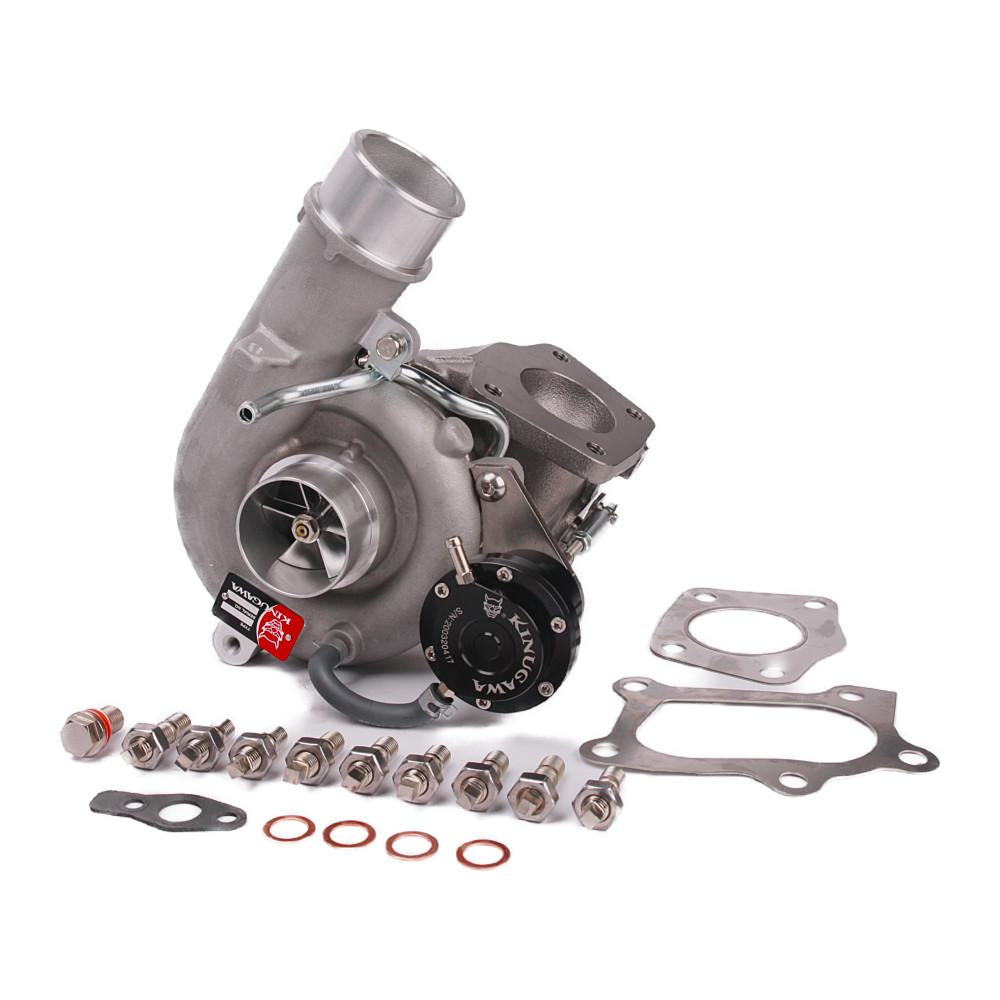

The set includes
- 1 x Oil supply set
- 1 x water supply and return pipe set
- 1 x Return Oil Pipeline
- 1 x turbine inlet and outlet gasket
- 8 x Stud And Nut Set
Situation
- Brand New
- Full balance from Schenk MBRS 110 Germany
Provider
- Kinugawa Turbo Systems
Guarantee
-One year
