Kinugawa GTX3582R Ball Bearing Turbocharger A/R.61 For TOYOTA 1JZ-GTE Bolt On

KANDO P/N

- 301-03052-032

ITEM NAME

- Kinugawa Billet Ball Bearing GTX3582R Turbocharger

  with A/R .61 Turbine Housing For TOYOTA 1JZ-GTE

  2JZ-GTE Direct Bolt On

APPLICATION

- TOYOTA 1JZ-GTE / 2JZ-GTE

- Direct bolt-on

CHRA/WHEEL SPEC

- Compressor Wheel : 62.5 / 82.5 mm / Trim 56

   (11+0 Billet Wheel with Extend Tip)

- Turbine Wheel : 62 /68 mm / Trim 84

COMPRESSOR HOUSING

- A/R: .60

- Factory turbo style

TURBINE HOUSING

- A/R .61

- Factory turbo style

COOLING/BEARING SYSTEM

- Oil and Water cooled

- Ceramic Dual Ball Bearing

KIT INCLUDES

- 1 x Oil feed line kit

- 1 x oil return line kit

- 1 x water feed and return line kit

- 1 x turbine inlet and outlet gasket set

- 1 x NBR hose for oil return side

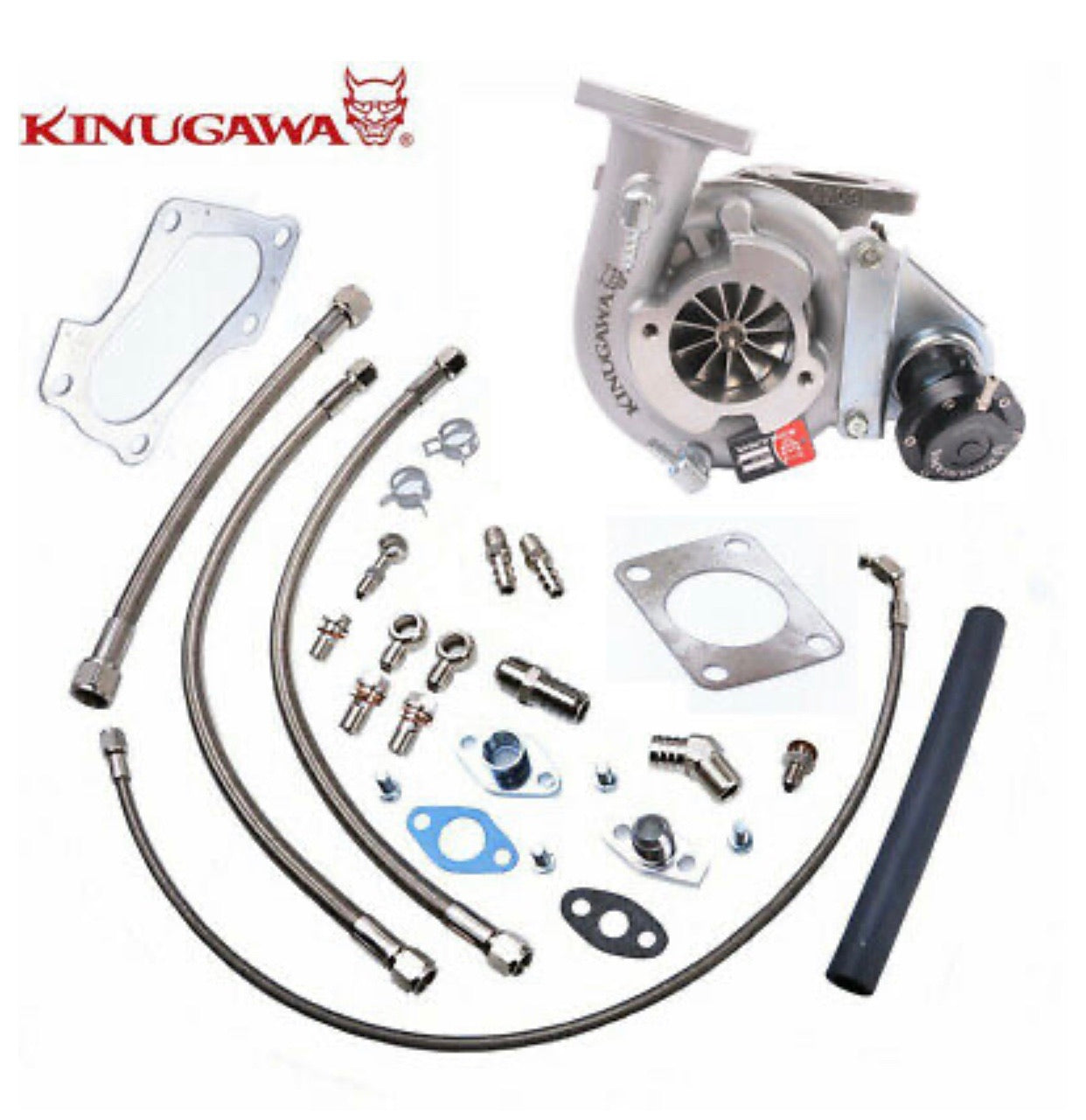

Everything shown on picture included

ITEM SITUATION

- Brand New

- Complete CHRA balanced

MANUFACTURE

- Kinugawa turbo

WARRANTY

- One Year
