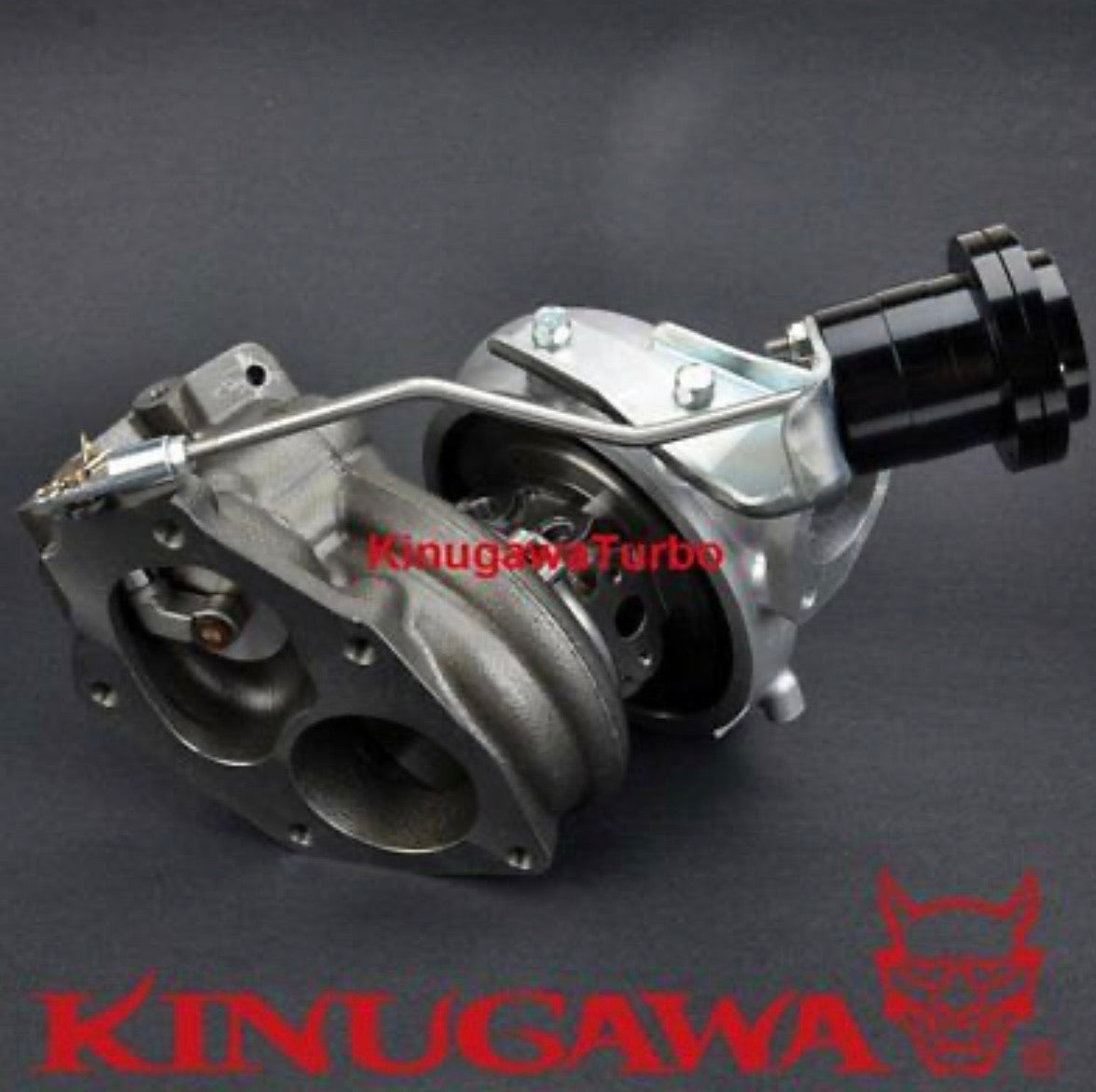

TD06SL2R-25G Anti Surge Turbo Mitsubishi EVO 9

KANDO P/N

- 321-02034-103 (GTX 11+0 Billet wheel)

ITEM NAME

- Kinugawa Billet TD06SL2R - 25G -10.5T EVO9

  Upgraded Twin Scroll Turbocharger with 3"

  Anti-Surge Compressor Housing (1.2 Bar Actuator)

APPLICATION

- 4G63T Mitsubishi EVO9 / EVO IX / EVO 4~9

CHRA/WHEEL SPEC

- TD06SL2R - 25G

- Compressor Wheel: 60.5 / 78 mm

- Turbine Wheel: 54.1 / 61mm

  (11 Blades TD06SL2R Turbine Wheel)

COMPRESSOR HOUSING

- 3" anti surge inlet

TURBINE HOUSING

- 10.5 cm^2 Single Puck Turbine Housing

COOLING/BEARING SYSTEM

- Oil and water cooling

- journal bearing system

  (Performance thrust bearing kit)

ACTUATOR PRESSURE

- 1.2bar / 17.64ps

- we also can offer 0.3bar, 0.5bar, 0.8bar, 1.0bar,

  1.2bar, 1.5bar, 1.8bar and 2.0bar actuator, please

  contact us if you need to change it.

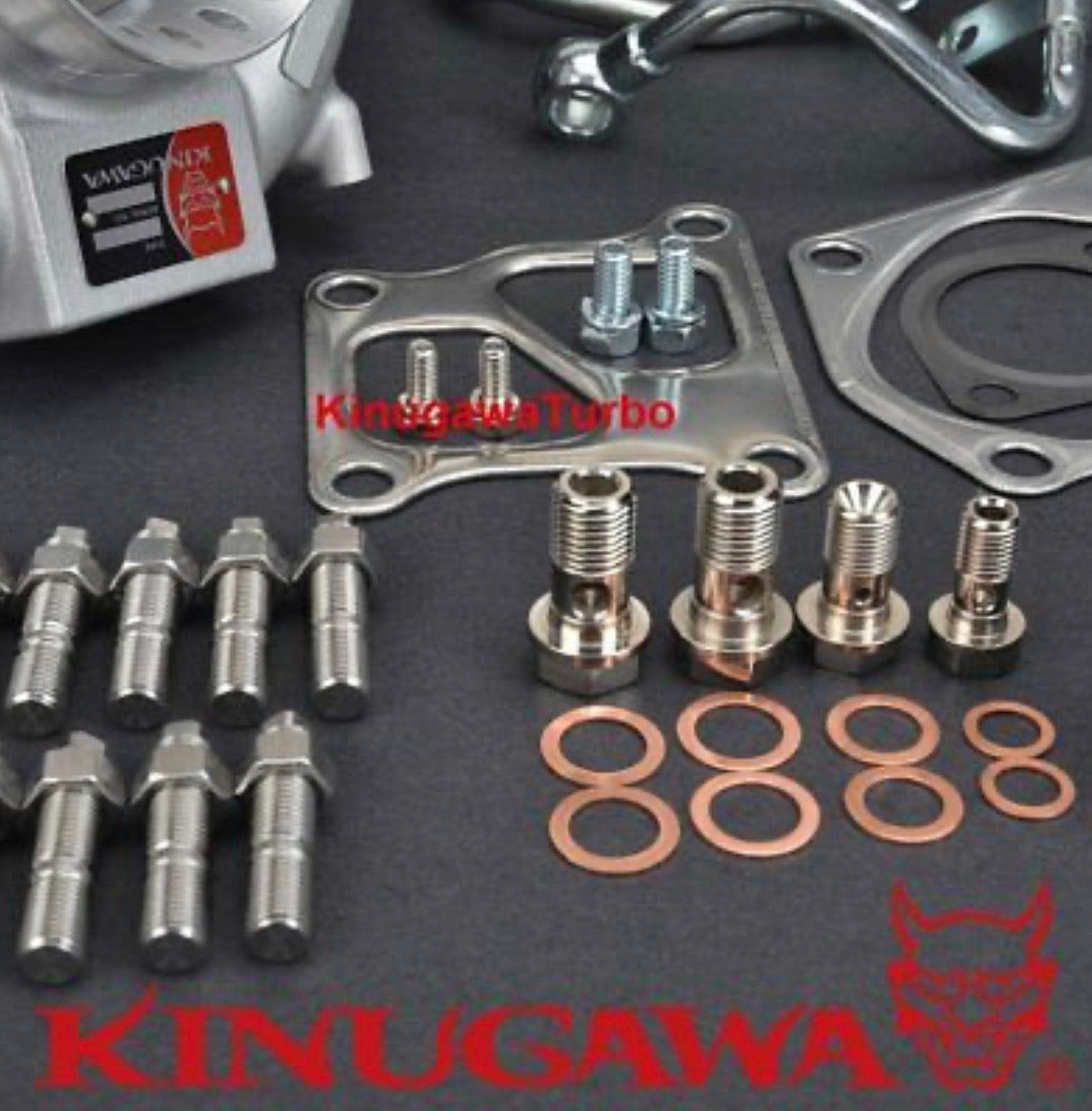

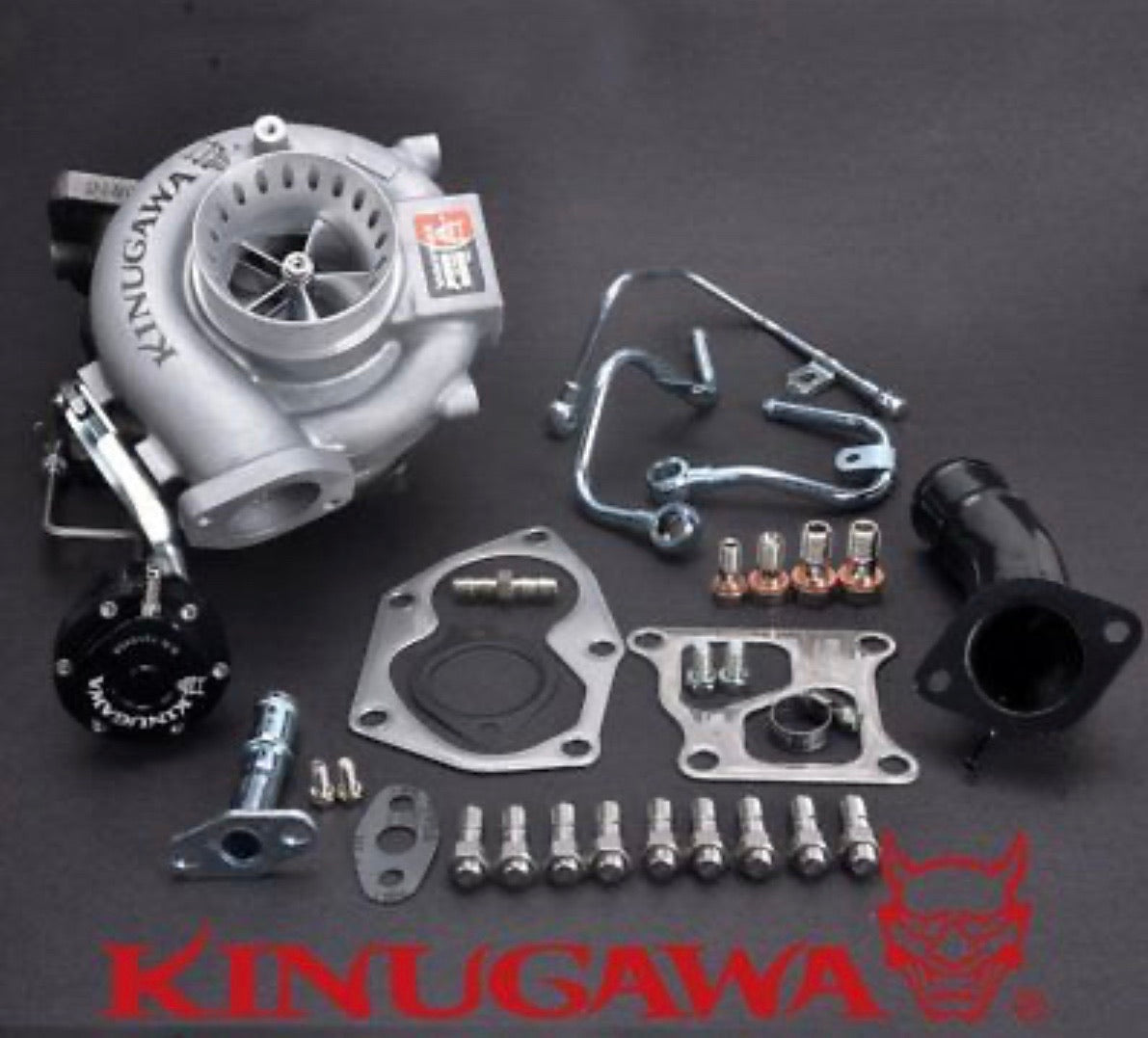

KIT INCLUDES

- 1 x oil feed pipe kit

- 1 x water coolant feed and return pipe kit

- 1 x turbine inlet and outlet gasket

- 1 x compressor outlet pipe

- 1 x oil return pipe kit

- 9 x stud and nut set

every parts shown on picture inlcuded.

TEM SITUATION

- Brand New

- Complete CHRA balanced by SCHENCK MBRS

  110 Germany

MANUFACTURE

- Kinugawa turbo

WARRANTY

- One Year
