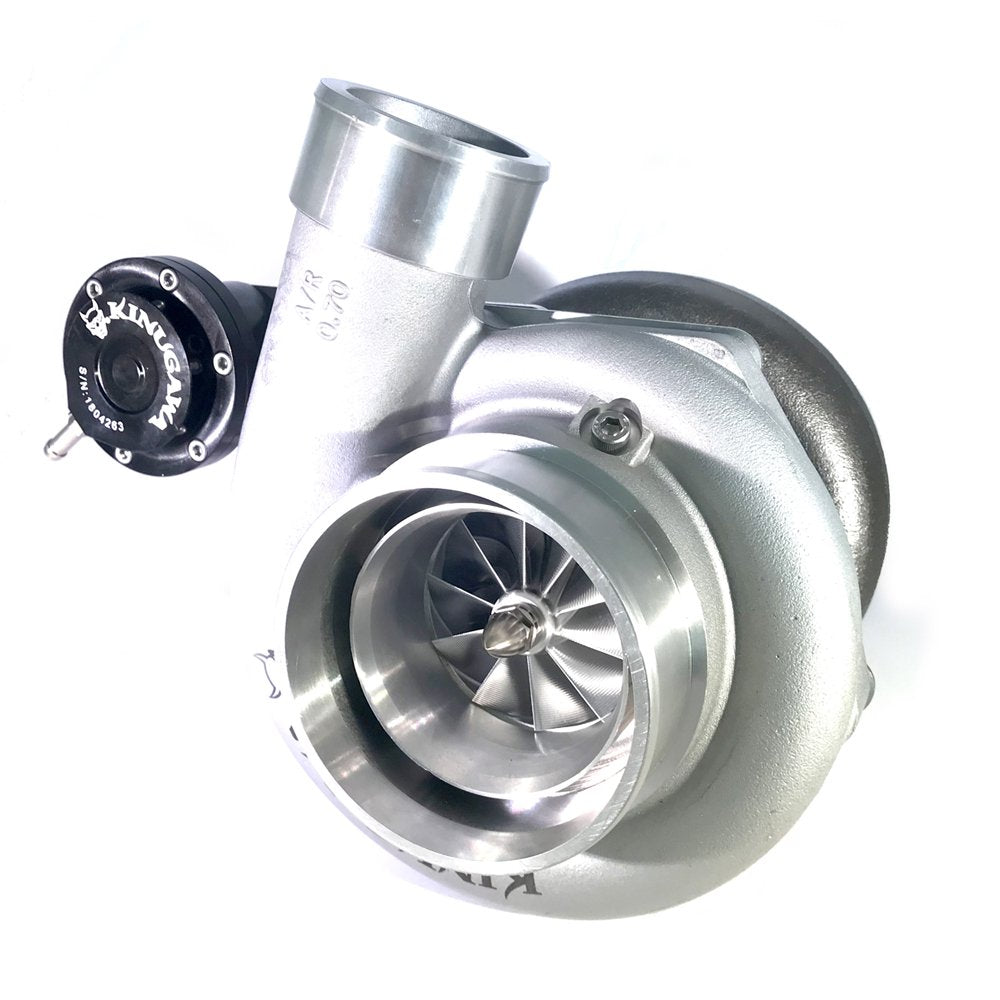

Kinugawa Gen II GTX3584RS Ball Bearing Turbocharger Ford Falcon XR6 BA/BF AR1.05

KANDO P/N

- 301-03016-015

ITEM NAME

- Kinugawa Gen II Ball Bearing GTX3584RS Turbo

  fit 2002~2005 Ford BA / BF XR6 with 4” Anti-Surge

  Compressor Housing & A/R 1.05 Kinugawa T3 l

  Internal Gate Turbine Housing

APPLICATION

- 2002~2005 Ford BA / BF XR6 Falcon

- 2.0L~5.5L engine

- 550~1,000 HP

WHEEL SPEC

- compressor wheel : 67.0 mm / 84.0 mm / Trim 84

  (Point milled w/ 10+0 blades billet wheel)

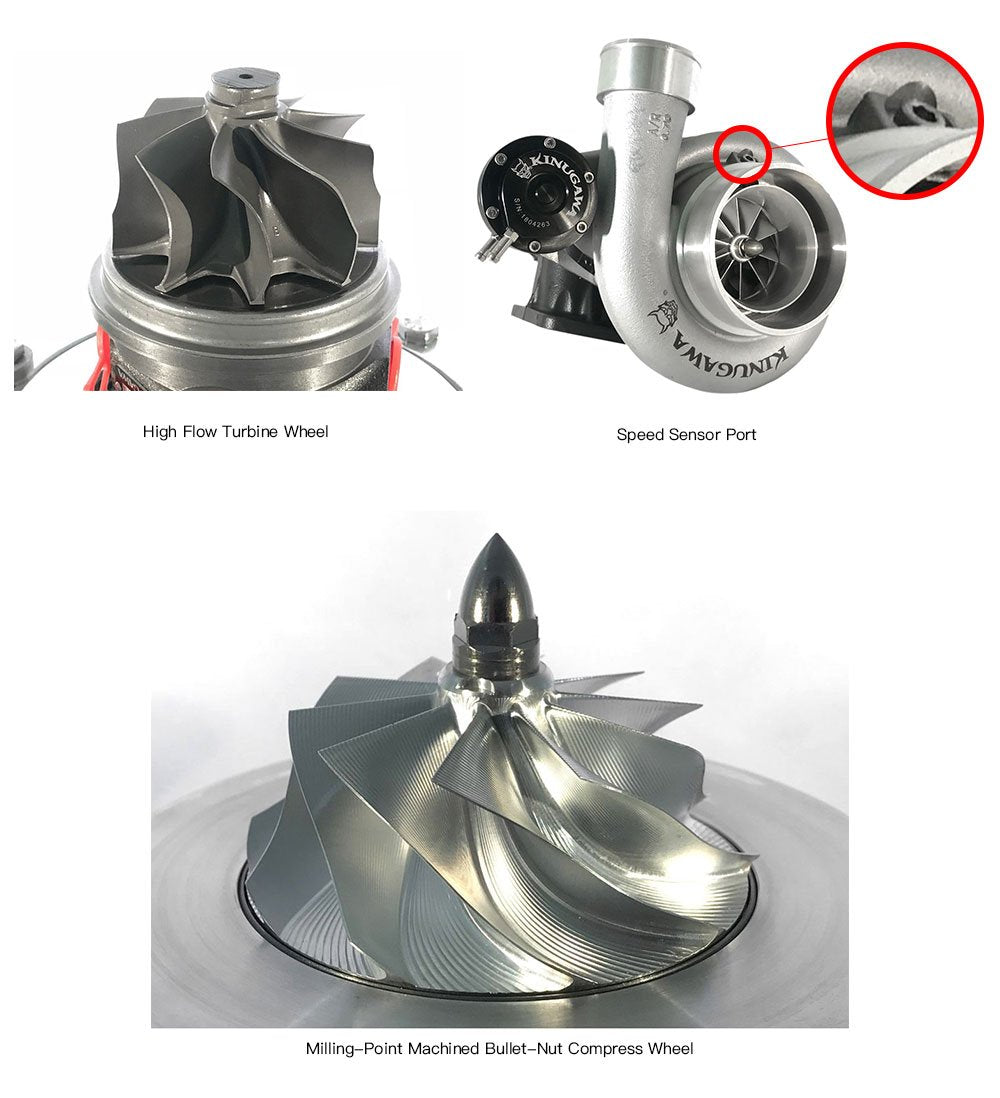

- turbine wheel : 62.3 mm / 68 mm / Trim 84

  (high hp turbine wheel flows exhaust gasses at a

  higher, more efficient rate than other GT and GTX

  turbine wheel designs. The new turbine wheel design

  allows for higher exhaust gas flow which increases

  aerodynamic efficiency compared to the previous

  design).

COMPRESSOR HOUSING

- compressor inlet OD : 4” / 100 mm

- compressor outlet OD : 2” / 51 mm

  (Hose connection type)

- compressor A/R : . 70 w/ anti surge

- New fully machined speed sensor port

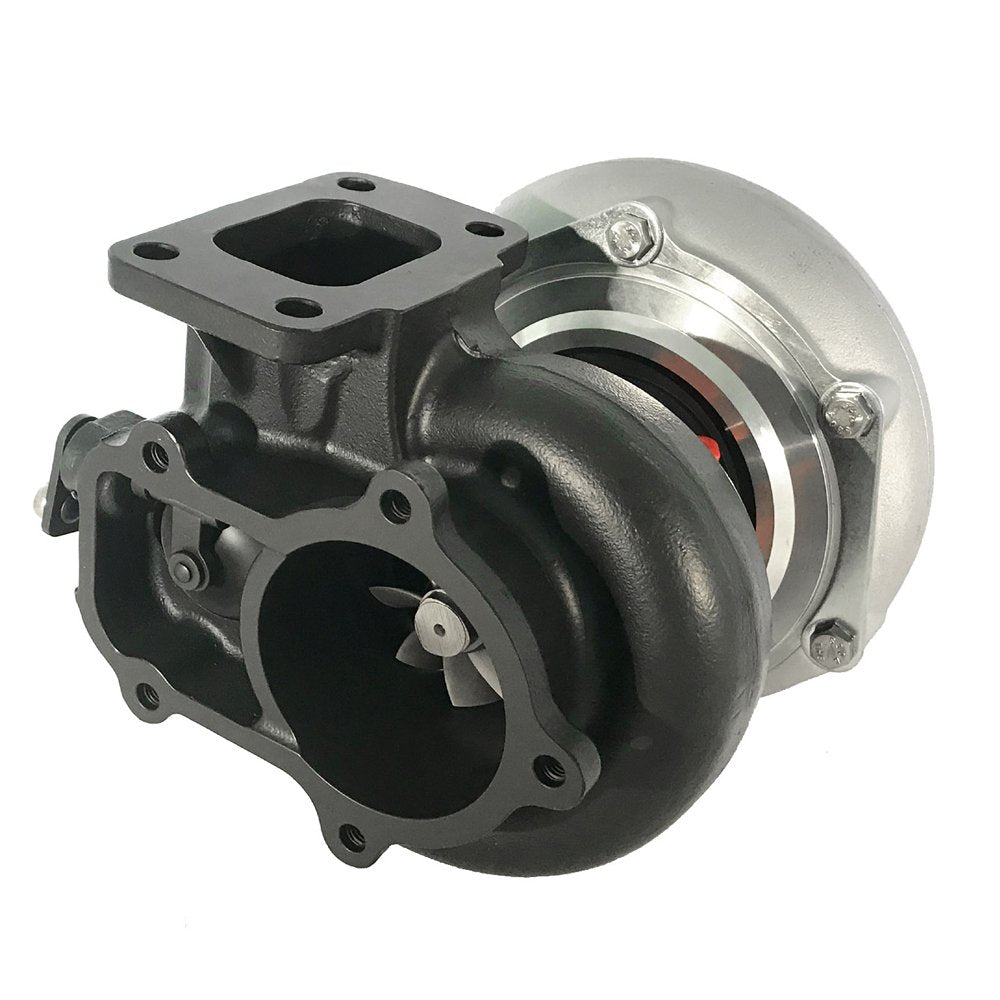

TURBINE HOUSING

- Turbine Inlet  : T3

- Turbine Outlet :  5 bolt

- Turbine Housing A/R : 1.05

- Material : SCH22+1%Niobium

COOLING/BEARING SYSTEM

- oil and water cooling

- ceramic dual ball bearing

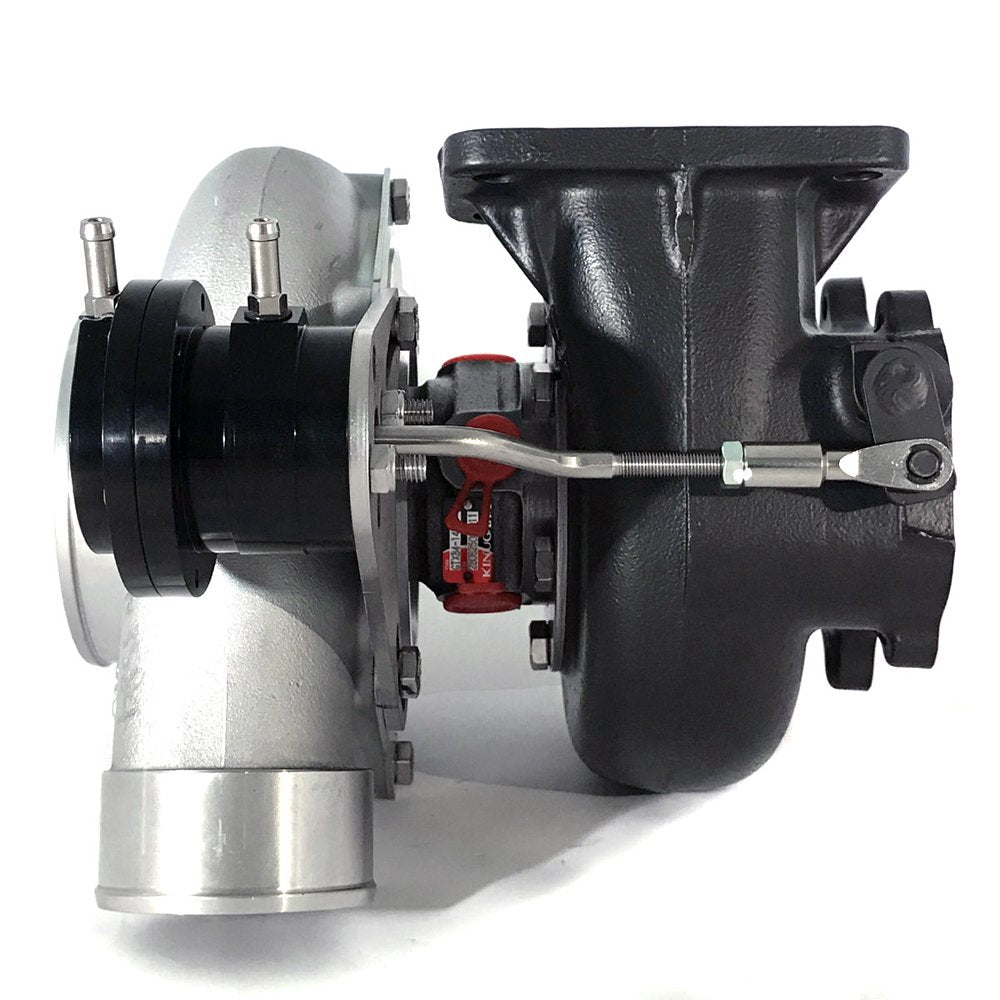

ACTUATOR PRESSURE

- 1.0bar / 14.7psi

- We also can provide 0.3bar, 0.5bar, 0.8bar, 1.2bar,

  1.5bar, 1.7bar and 2.0bar actuatorm please contact

  us if you need to change it.

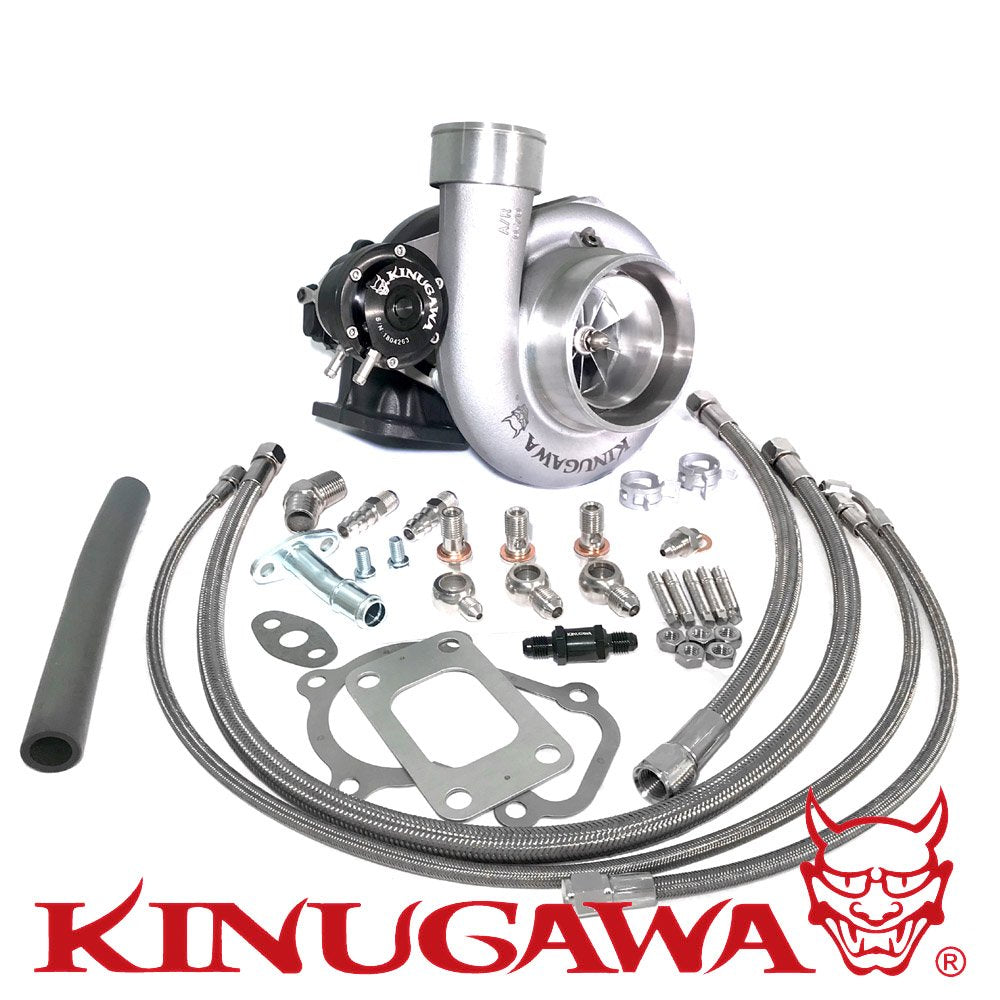

KIT INCLUDES

- 1 x oil feed line kit

- 1 x water feed and return line kit

- 1 x turbine inlet and outlet gasket

- 1 x oil return pipe kit

- 1 x NBR hose for oil return

- 2 x circlip for NBR hose

- 5 x stud and nut set

Everything shown on picture is included

ITEM SITUATION

- Brand new

WARRANTY

- one year

MANUFACTURE

- kinugawa turbo
