Kinugawa Billet Turbo SUBARU BP5 Liberty GT TD04HL-20T 9 Blade/Replace IHI VF38

KANDO P/N

- 331-02049-174

ITEM NAME

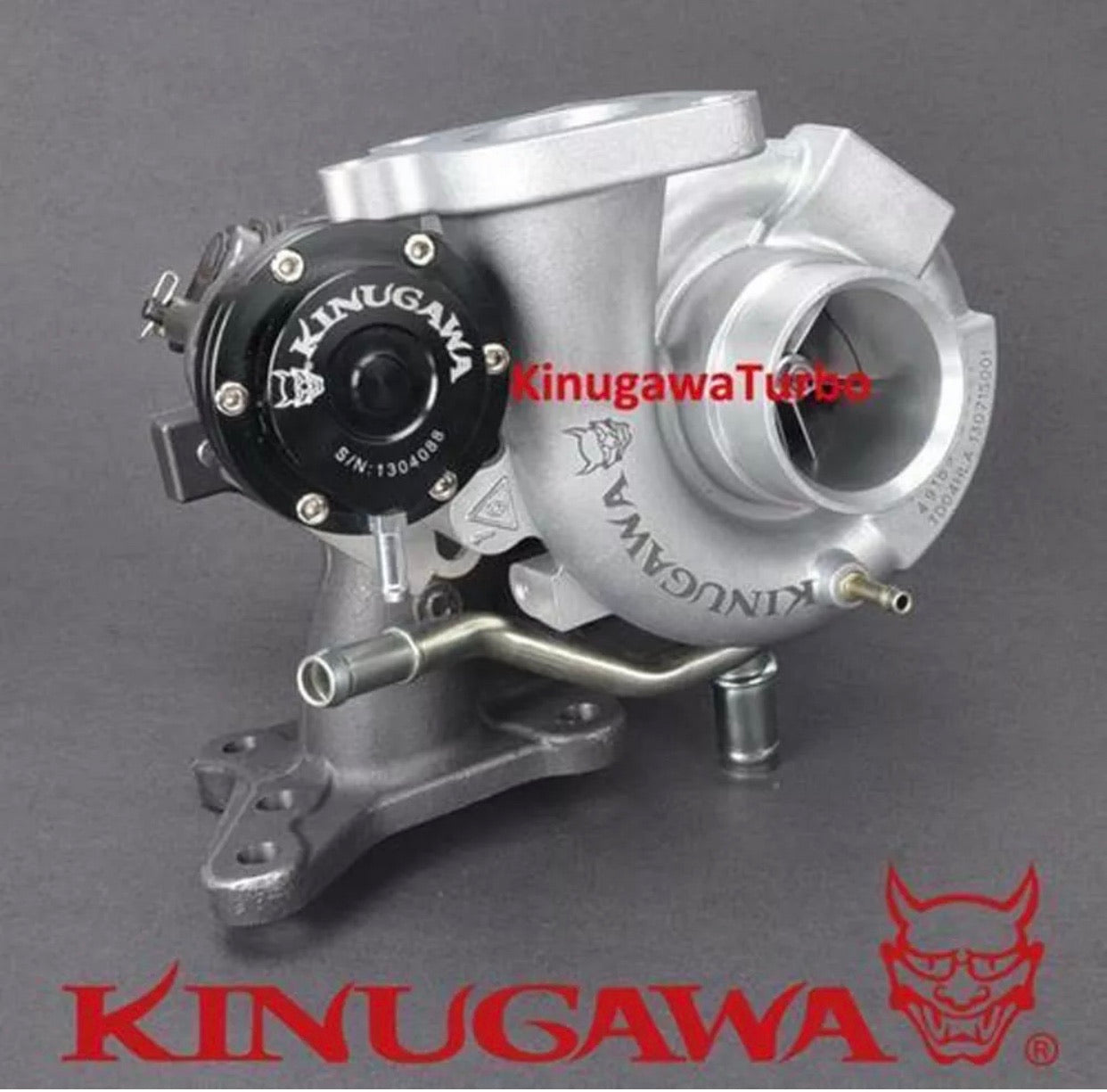

- Kinugawa Billet Turbocharger for SUBARU 06~07

  Legacy Liberty GT TD04HL-20T-8.5 Twin Scroll

  Turbocharger w/ 9 Blades Turbine Wheel

APPLICATION

- SUBARU 06~07 BP5 / BL5 Legacy Liberty GT

- SUBARU 03~09 JDM Legacy GT TA-BL5

- 49189-06500, 49189-06501, 14412-AA460

  TD04HL-19T JDM Version Turbocharger

- It can replace VF38, VF44, VF45 Directly

CHRA/WHEEL SPEC

- TD04HL-20T

- Compressor wheel : 47 / 58.0 mm

  (Billet 20T 6+6 blades / max boost to 5.0bar)

- Turbine wheel : 52 / 45.6 mm

  (High flow 9 blades / light Wight)

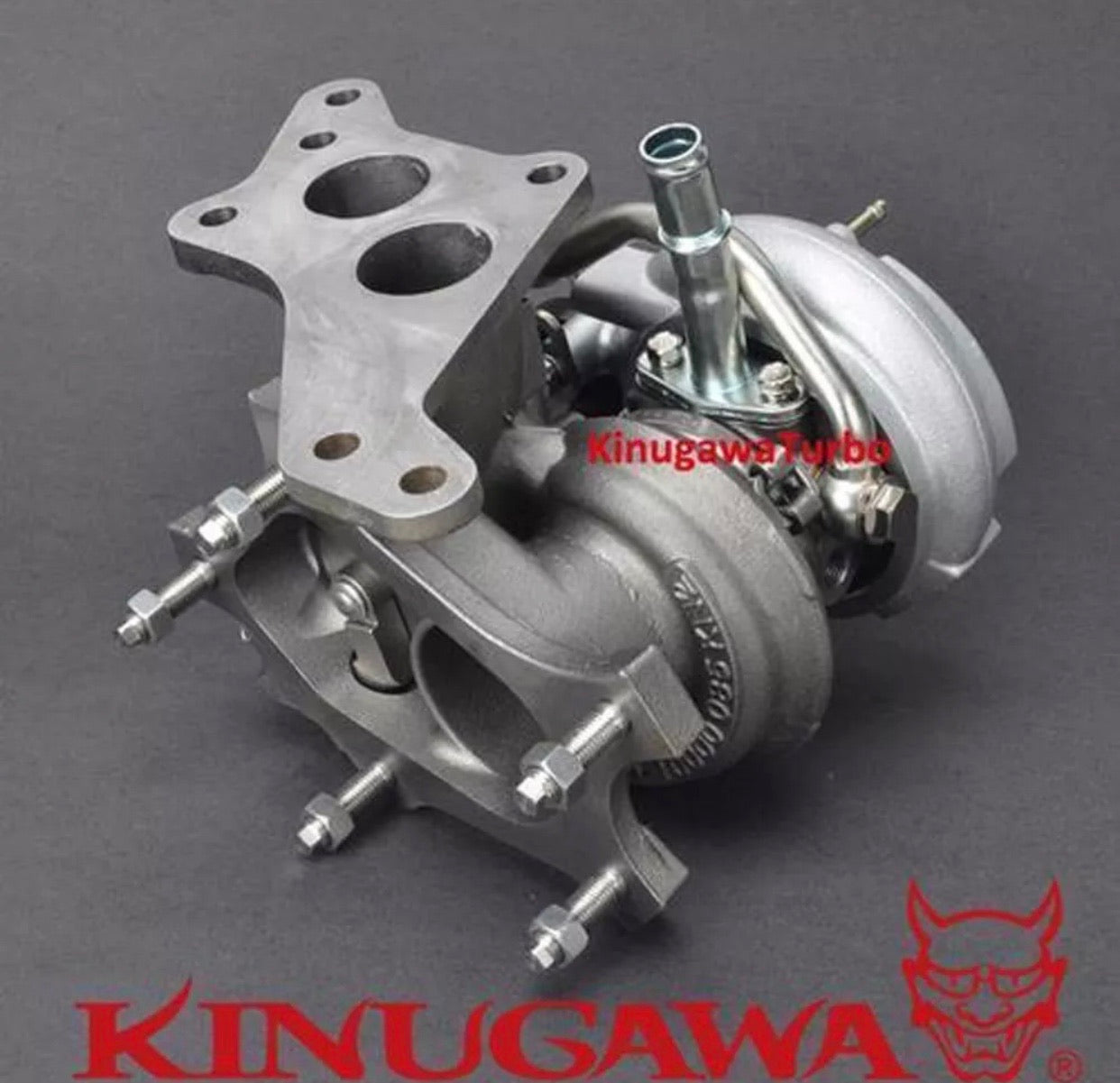

TURBINE HOUSING

- 8.5cm^2

- Lecacy twin scroll twin scroll type flange

COOLING/BEARING SYSTEM

- Oil and water cooling system

- Journal bearing system

  (Performance thrust bearing kit)

ACTUATOR PRESSURE

- 0.8 bar / 11.76 Psi Adjustable Actuator

- We also provide 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar,

  1.7 bar and 2.0 bar actuator,Please Kindly let us

  know if you need to change it.

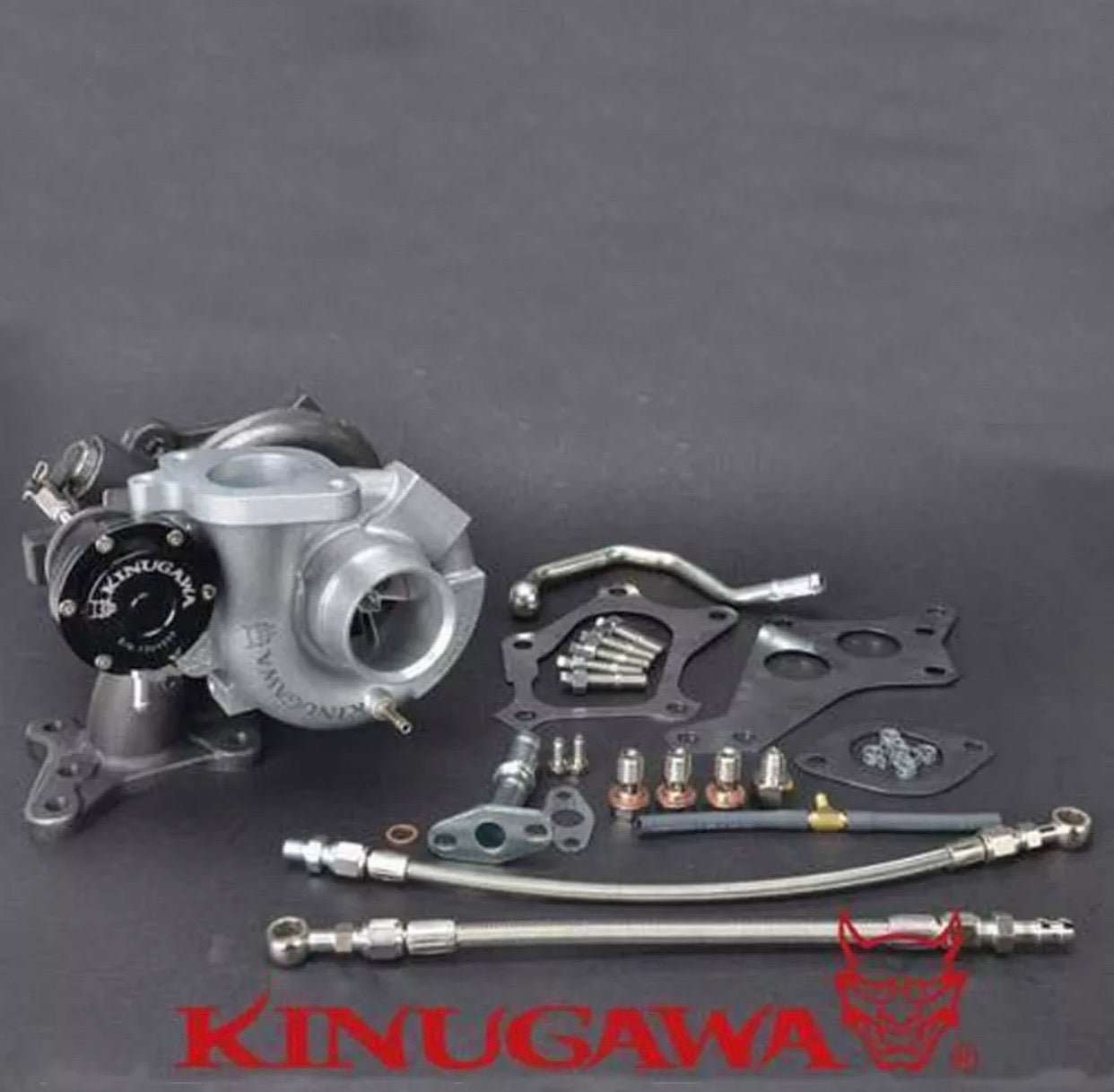

KIT INCLUDES

- 1 x oil feed line kit

- 1 x water coolant feed and return line kit

- 1 x turbine inlet and outlet gasket

- 1 x compressor outlet gasket

- 5 x stud and nut set

- 1 x oil return pipe kit

Everything shown on ebay picture is included)

ITEM SITUATION

- Brand new

- Complete CHRA balanced by SCHENCK MBRS

  110 Germany

WARRANTY

- One year

MANUFACTURE

- Kinugawa turbo
