Kinugawa Billet Turbo 3" TD05H-18G For Nissan TD42 Patrol/T3 8cm/6 Bolt

KANDO P/N

- 321-02001-317

ITEM NAME

- Kinugawa Nissan TD42 Patrol Diesel TD05H-18G

  Billet Turbocharger 3" Anti Surge Compressor

  Housing and 8cm T3 6bolt Outlet Turbine Housing

APPLICATION

- NISSAN Patrol TD42 4.2l diesel GQ engine

- Universal Type

- 2000~3000cc

CHRA/WHEEL SPEC

- TD05H-18G

- Compressor wheel: 50.3 / 68 mm

  (Billet 18G 6+6 Blades / Max boost to 5.0bar)

- Turbine wheel: 49.2 / 56 mm

COMPRESSOR HOUSING

- A/R 60

- Inlet : 76mm / 3” with anti surge

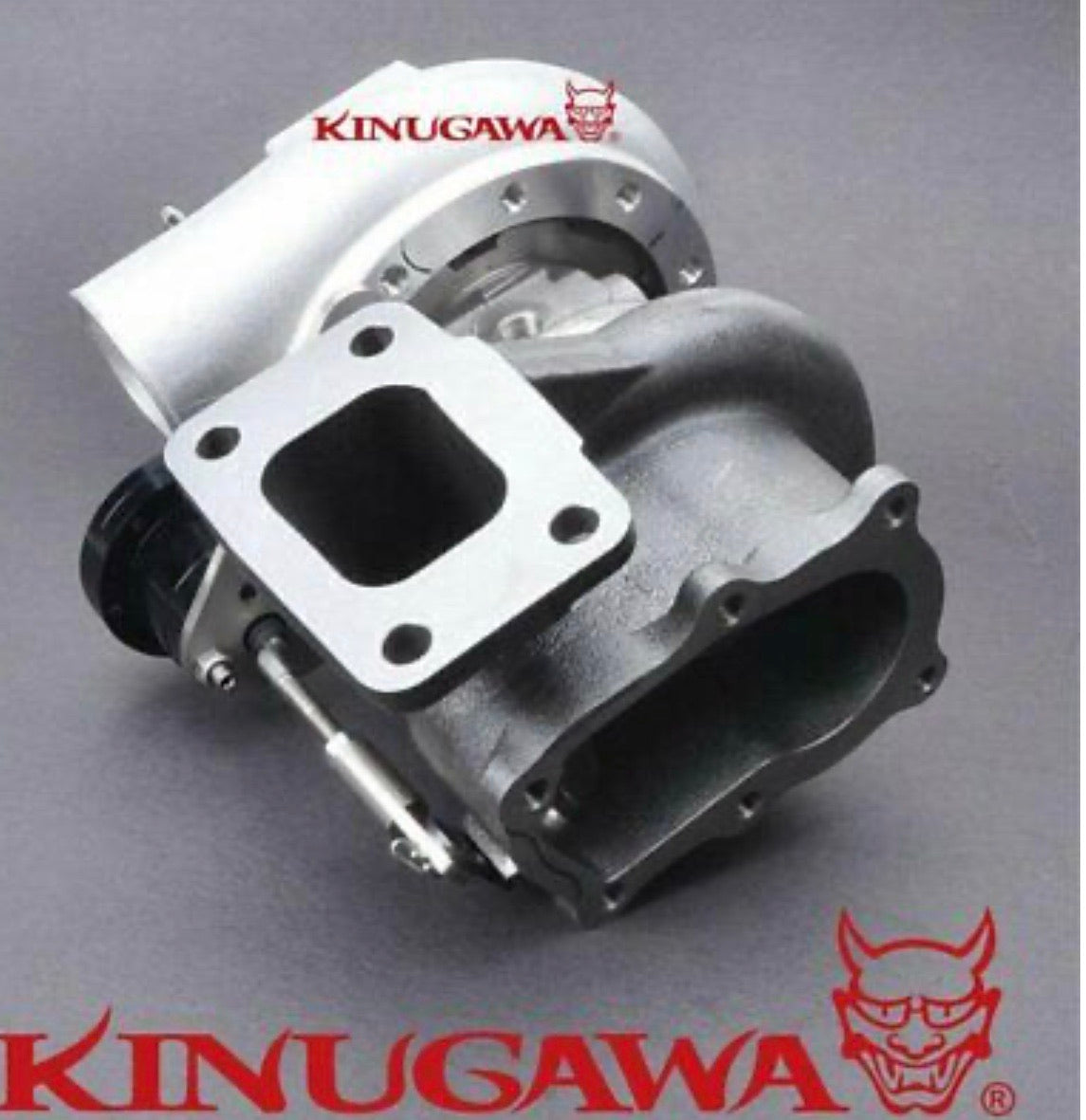

TURBINE HOUSING

- A/R : 8 cm / AR 57

- T3 Inlet Flange

- 6 Bolt outlet / Internal Gated

COOLING/BEARING SYSTEM

- Oil cooling Only

- Journal Bearing(Performance Thrust Bearing Kit)

ACTUATOR PRESSURE

- 1.0bar / 14.7 Psi

- 0.5Bar, 0.8 Bar, 1.2 Bar, 1.5 bar actuators are

  available, please contact us if you need to change it.

BOOST/HP

- Boost limited : 2.8 Bar

- Suggested boost : 1.5 Bar

- Max hp : 300-450 hp

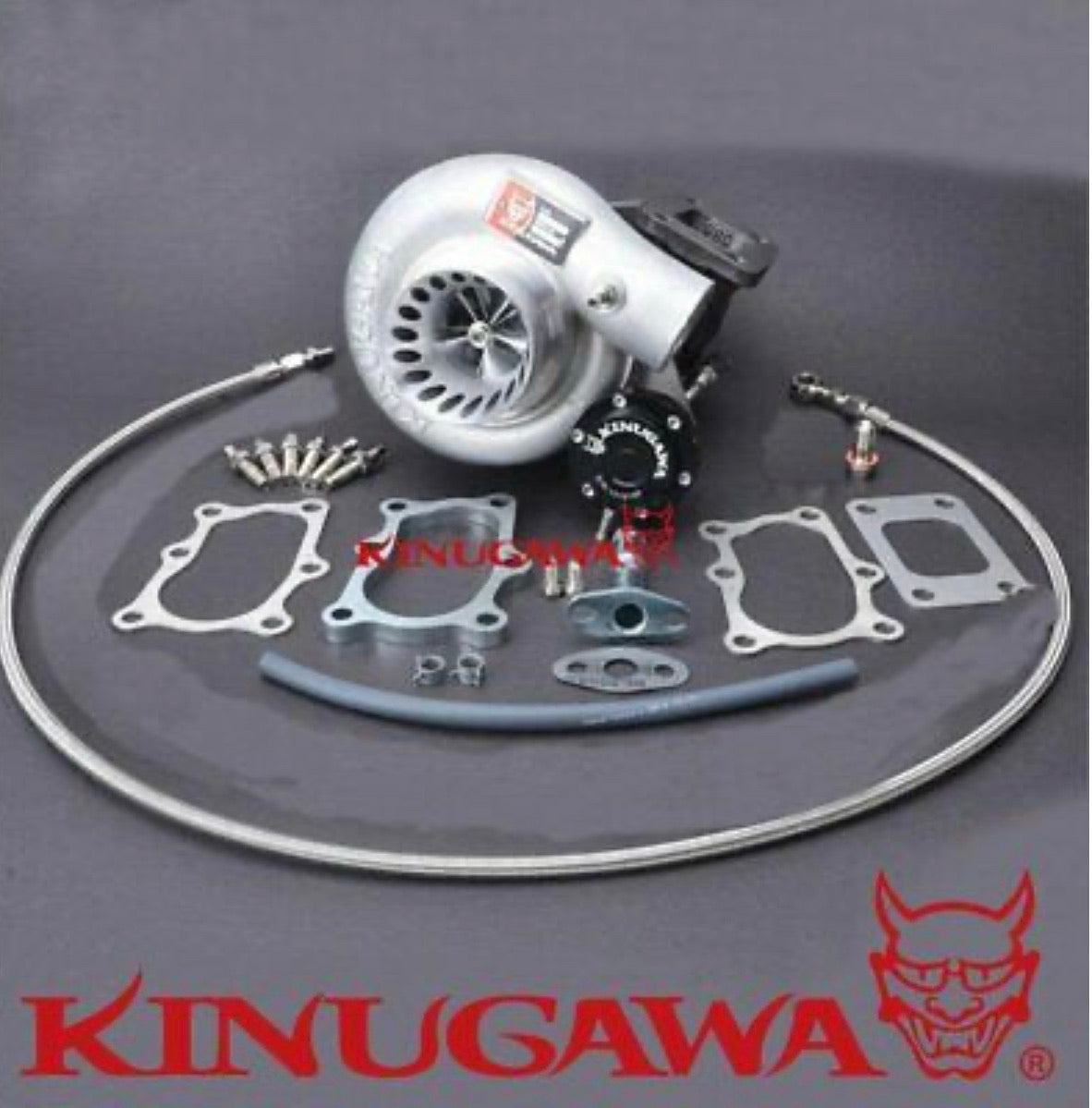

KIT INCLUDES

- 1 x Oil feed line kit

- 1 x turbine inlet / outlet gasket set

- 1 x turbine outlet flange

- 1 x oil return pipe k

Everything shown on picture is included.

ITEM SITUATION

- Brand New

- Complete CHRA balanced by SCHENCK MBRS

  110 Germany

MANUFACTURE

- Kinugawa turbo

WARRANTY

- One Year
